ASTM A193 Grade B8M

High Tensile 316/316L Stainless Steel Bolts

ASTM A193 Grade B8M

ASTM A193 Grade B8 Stud Bolts ASTM A193 Grade B8M is a standard material specification for high tensile 316/316L stainless steel bolts, screws, studs or other external threaded fasteners for high-temperature, high-pressure service and other special purpose applications.

A193 Grade B8M is chemically equivalent to AISI 316/316L stainless steel with improved strength, categorized in two different tensile classes namely class 1 and class 2.

A193 Grade B8M class 1 bolts are carbide solution treated with maximum tensile strength requirement of 75 ksi or 515 MPa, yield 30 ksi or 205 MPa, and maximum hardness of 223 HBW whereas Grade B8M class 2 bolts are carbide solution treated and strain hardened to achieve higher tensile requirement of 110 ksi or 760 MPa and 95 ksi or 655 MPa and maximum hardness of 321 HBW or 35HRC. Grade B8M fasteners are used for high strength pipeline bolting applications.

Visit Specification page to find information on ASTM A193 Grade B8M chemical composition, applicable heat treatment, and mechanical properties such as tensile strength, yield strength, hardness requirement, product marking, applicable product standards, etc.,

For a quick quote on ASTM A193 Grade B8M Bolts, please contact our sales team at estimation@ferrobend.com

ASTM A193 Grade B8M Fasteners


Product Standards

Product DIN ISO ASME UNI
Imperial Metric

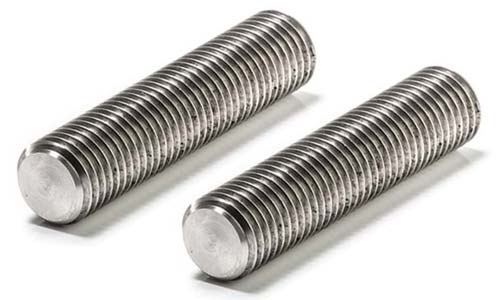

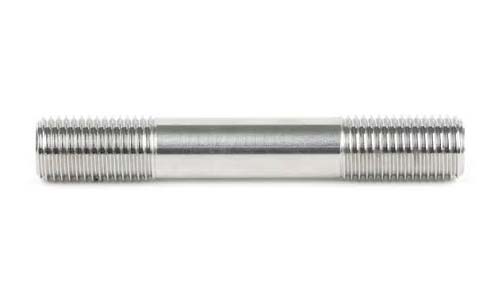

Stud Bolts 976 -- B18.31.2 B18.31.1M 6610

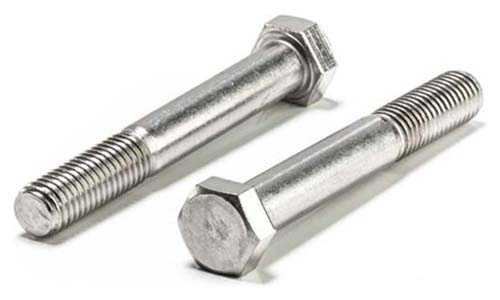

Hex Bolts 931 4014 B18.2.1 B18.2.3.5M 5737

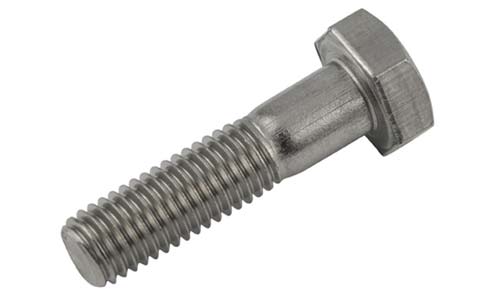

Heavy Hex Bolts 6914 7412 B18.2.1 B18.2.3.7M 5712

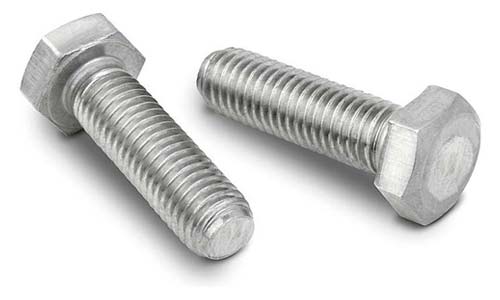

Hex Cap Screws 933 4017 B18.2.1 B18.2.3.1M 5739

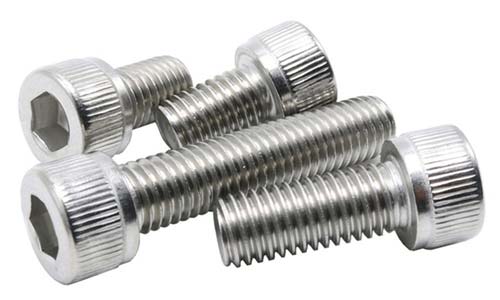

Socket Head Cap Screws 912 4762 B18.3 B18.3.1M 5931

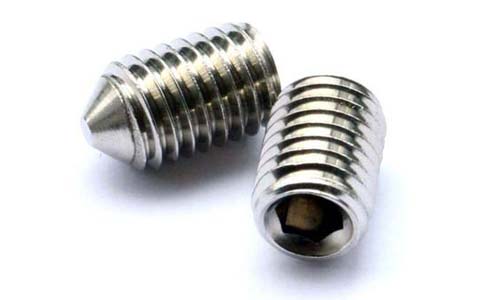

Set Screws 916 4029 B18.3 B18.3.1M 5929

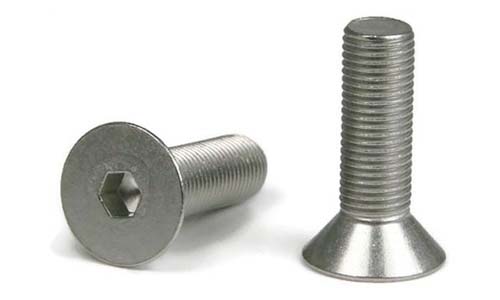

Countersunk Screws 7991 10642 B18.3 B18.3.1M 5933
